Whirlpool Animation

Whirlpool dryer panel animations

Some early DIC dryer panel mode shape determination and very early exploratory work on real time expansion.

SDASL - dryer panel animations

1 - Dryer panel twisting mode 1 from DIC, 2 - Dryer panel bowing mode 2 from DIC, 3 - real time response expansion from limited measurements

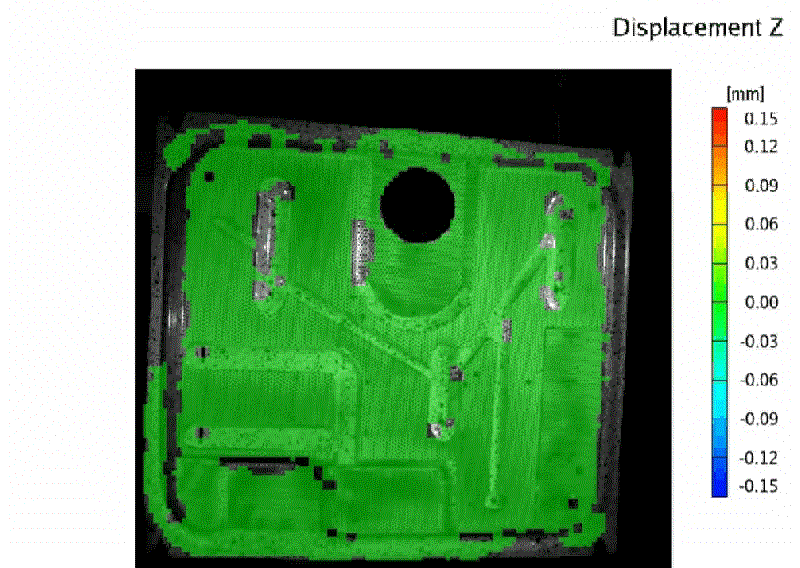

1-AE_DIC Dryer Panel Mode 1

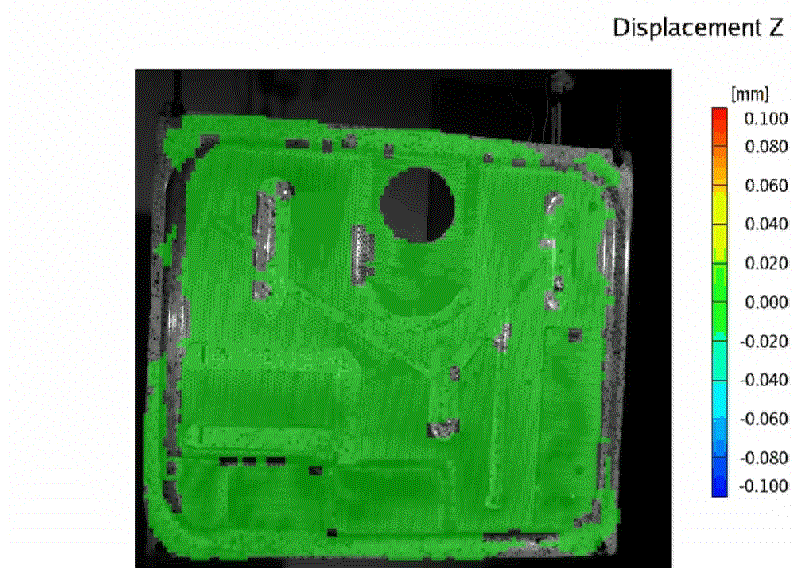

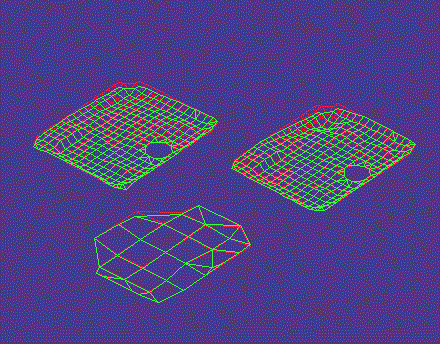

2-AE_DIC Dryer Panel Mode 23-CC_DB_RTO_RTOE_Long
