SWWP DP Expansion Strain turbine blade animation

SWWP DP Expansion Strain turbine blade animation

Southwest Wind Power Wind Turbine Blades. Optical (DP) limited measurements expanded to full field for dynamic stress strain
 SWWP DP Expansion Strain turbine blade animations
1 - Point tracking sine excitation mode 1, 2 - Point tracking expansion for mode 1 strain, 3 - Point tracking sine excitation mode 5, 4 - Point tracking expansion for mode 5 strain

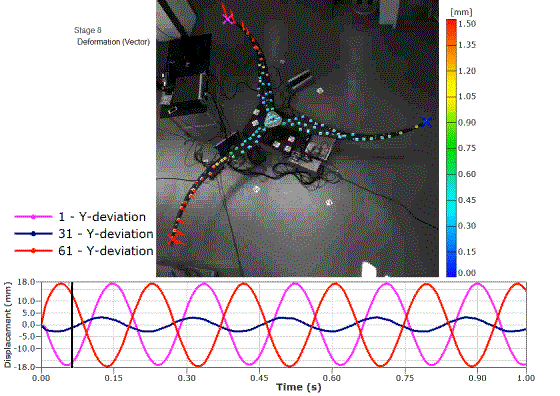

1-P_M1_5.312_0001

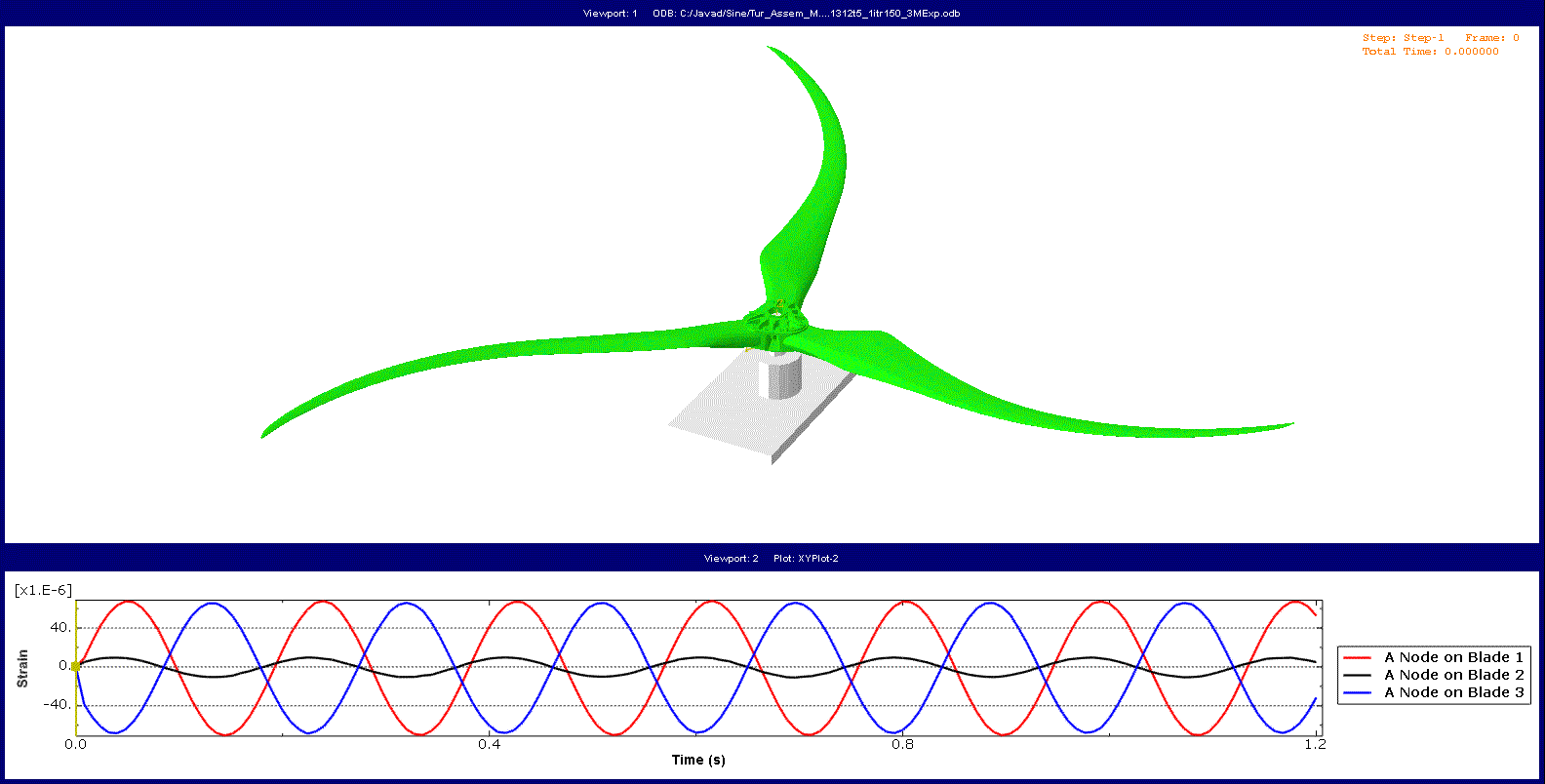

2-M1_animation_assem

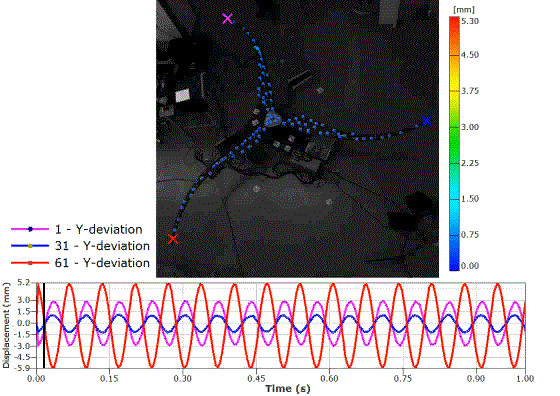

3-P_M5_14.845t2_0001

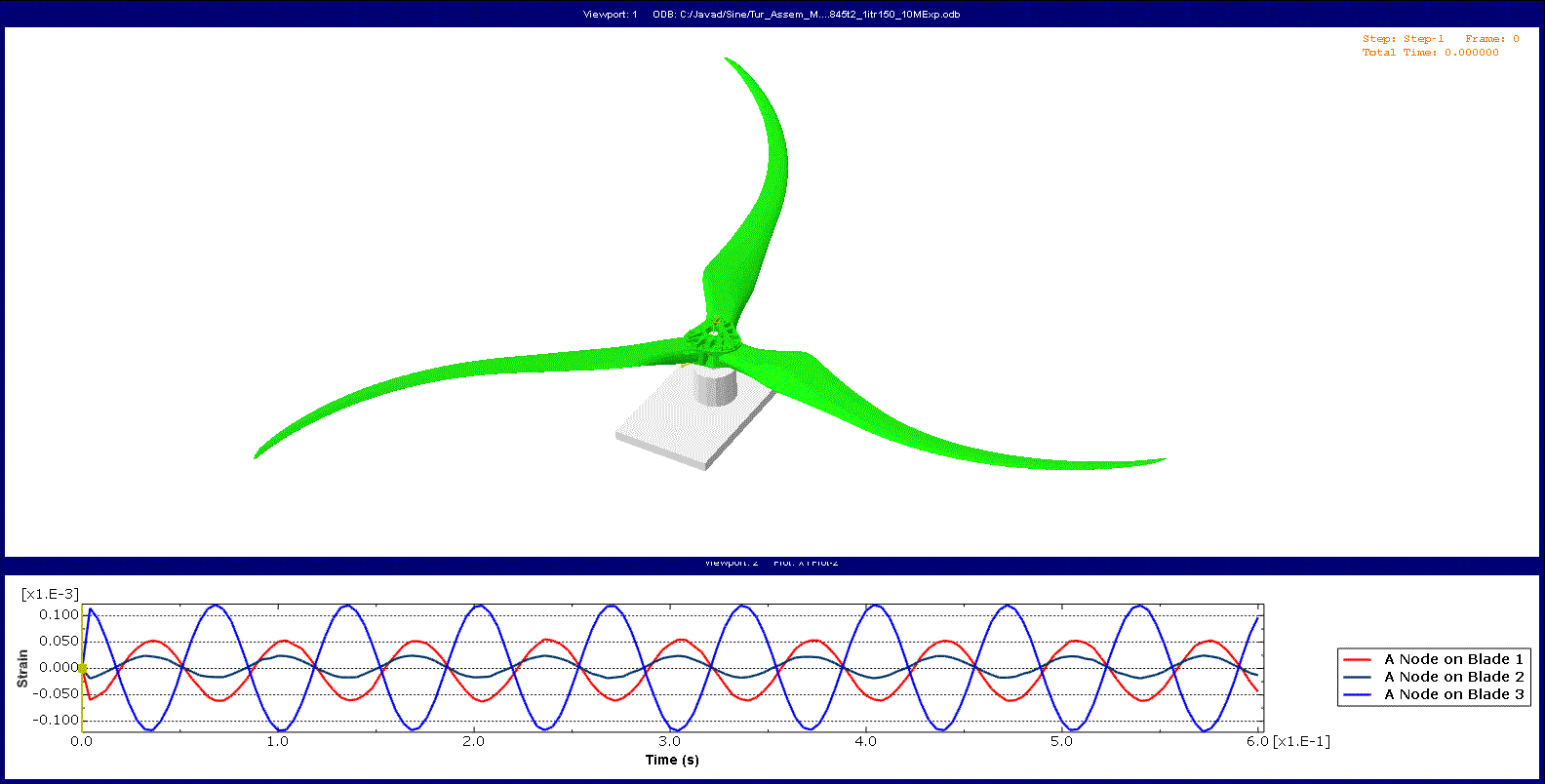

4-M5_animation_assem
